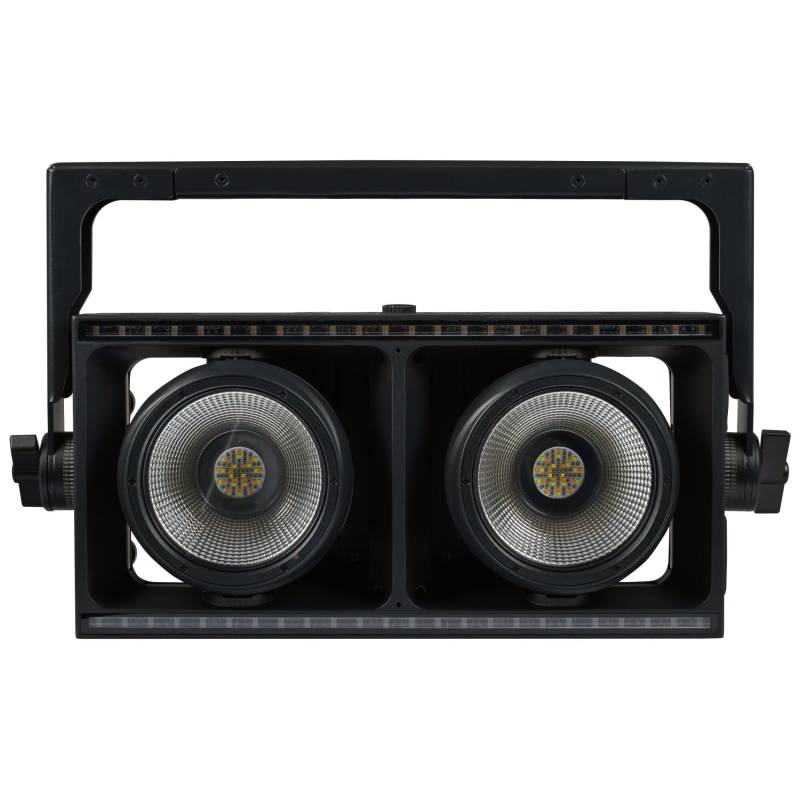

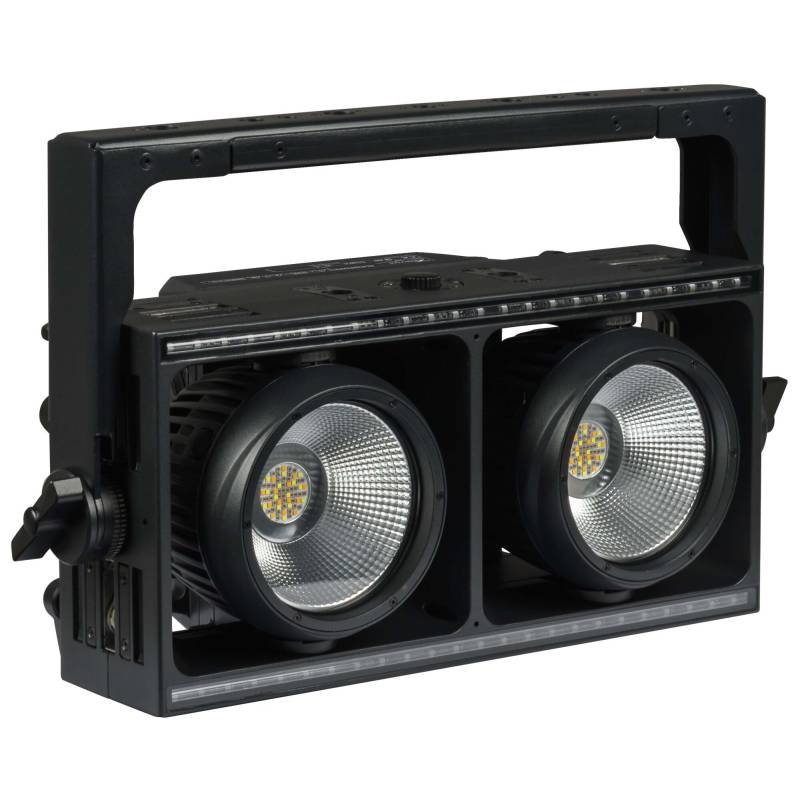

BLOK EVO 2FX

Descripción

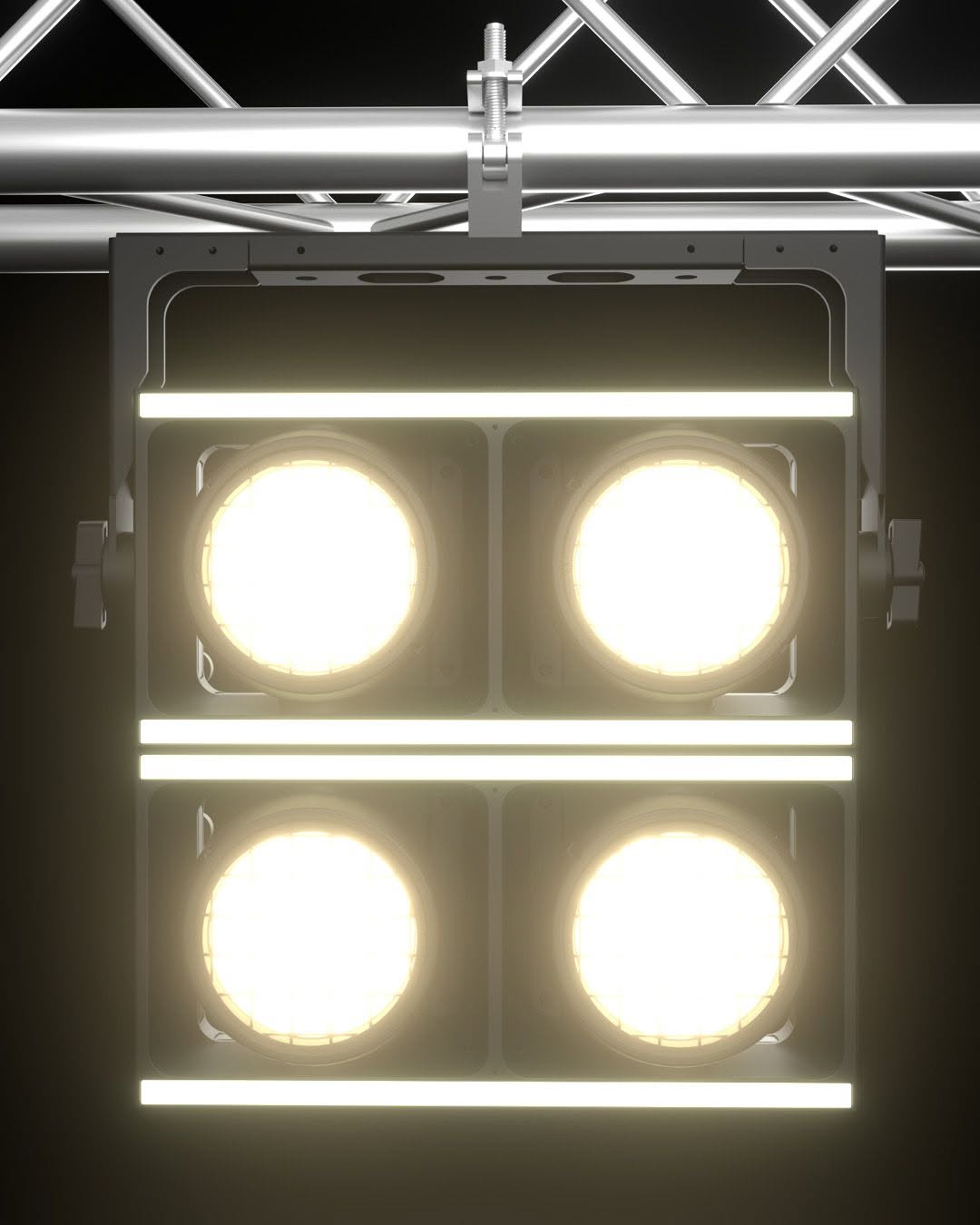

BLOK EVO 2FX

Dual RGBL LED source blinder

2x400W source

2 × Tunable White LED strips

50° optics

IP65 protection rating

DMX control

https://www.teledinoradio.com/articulos/blok-evo-2fx

Tenemos dos nuevos modelos en nuestro catálogo!

BLOK EVO es nuestro nuevo sistema de iluminación modular, que combina fuentes LED RGBAL de última generación con gestión de color avanzada, modularidad y versatilidad.

Diseñados principalmente como cegadores LED de alto rendimiento, los modelos BLOK EVO están diseñados para iluminar al público, ofreciendo tanto una potente luz blanca tradicional como colores intensos y saturados para potenciar el impacto visual y la interacción con el público.

BLOK EVO 1 FC cuenta con un único motor de luz diseñado para una salida suave y controlada, que proporciona blancos de alta calidad y colores vibrantes, mientras que BLOK EVO 2 FX integra una arquitectura de doble fuente que aumenta significativamente la potencia e introduce efectos de iluminación dinámicos específicos para una experiencia de iluminación aún más inmersiva.

–

Light source	2 × 400 W RGBAL COB LED 2 × Tunable White linear LED strips with 8 individual sections CRI≥84Ra LED lifespan: > 50.000h LED refresh frequency: adjustable from 1000 Hz to 20 KHz flicker free

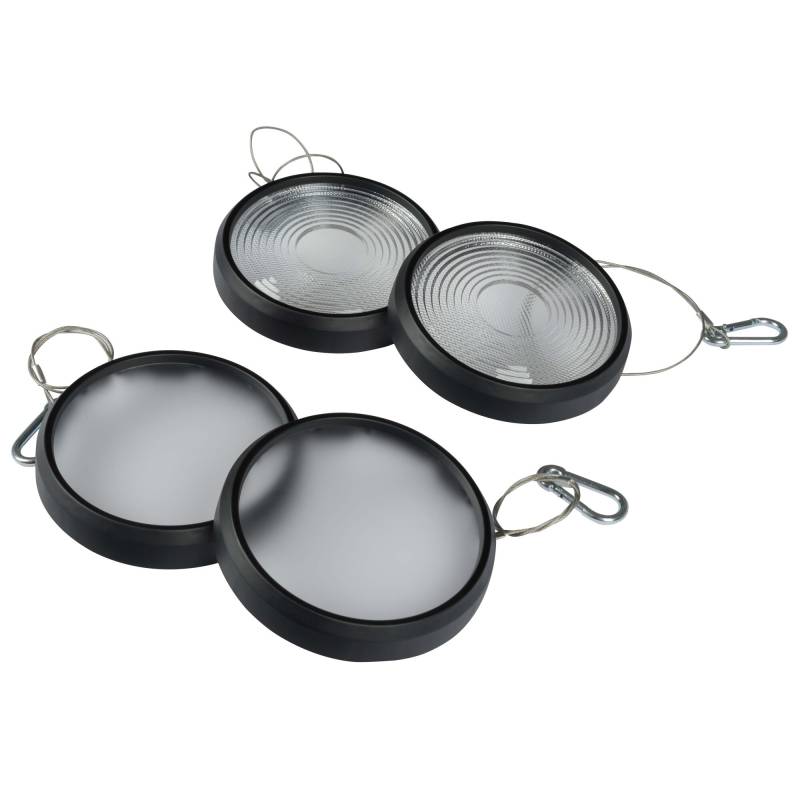

Optic system	Beam angle: 50° without lenses, 37° with Fresnel lens and 45° with frost lens Luminous flux of FULL ON: 1126 lx @ 5m without lenses Luminous flux of FULL ON: 1630 lx @ 5m with 37° Fresnel lens Luminous flux of FULL ON: 930lux @ 5m with 45° frost lens
Color system	RGBAL LEDs (cells) Warm White 2400K and Cold White 4900K LEDs (strips)
Effects	16-bit dimmer Dimmer curves: 4 selectable dimming curves available Halogen dimming speed emulation Red Shift function (tungsten dim-to-warm emulation) High speed electronic strobe, pulse, single sectors FX with adjustable speed, duration and rate 26 dynamic patterns with adjustable speed, direction and fades Virtual color wheel with 109 numeric gel filters presets CTC from 1750K to 20000K (cells) CTC from Warm White to Cold White (strips) Selectable PWM: adjustable from 1000 Hz to 20 KHz Emergency mode: editable dimmer level, color or color temperature when DMX signal is lost
Control and programming	25 DMX channel modes Protocol USITT DMX 512, RDM Strips and cells mapping swap via DMX Master/Slave mode

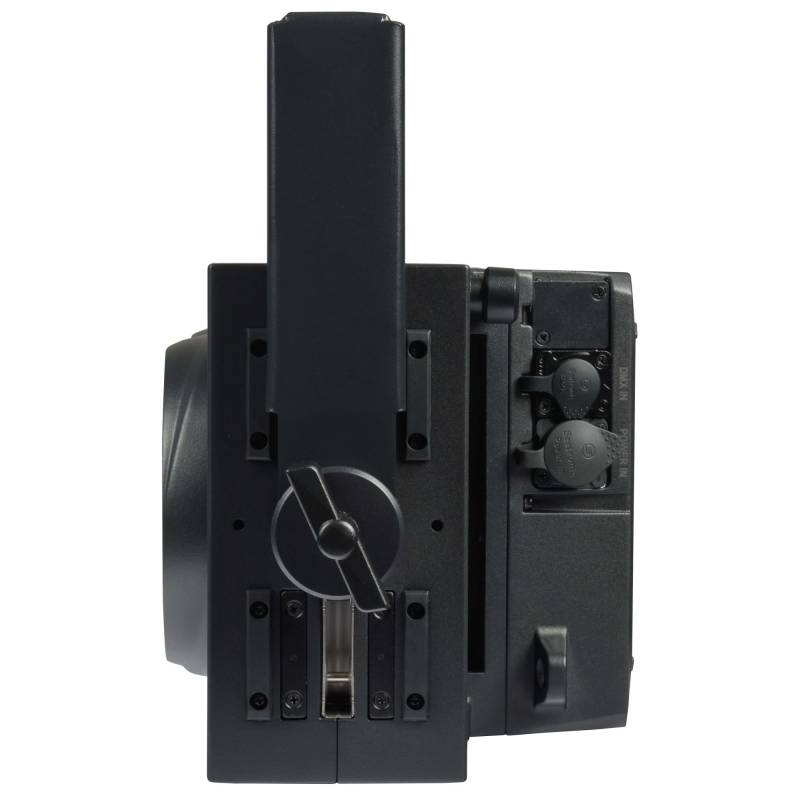

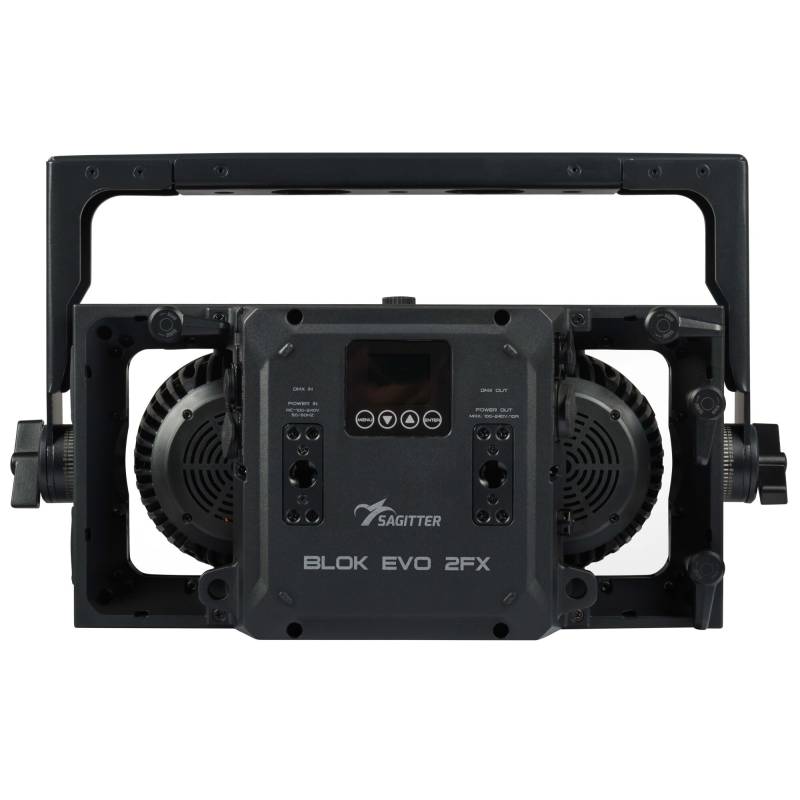

Structure and cabinet	Die cast aluminium housing LCD graphic display Quick-release anchor points, on-board mechanics for stacking multiple devices Pan directional adjustment for each cell: +/- 20° with manual control Mounting points: 2 pairs of 1/4-turn locks omega bracket IP rating: IP65 DMX 5-poles XLR IN/OUT IP65 connectors Low-noise controlled cooling system
Power supply	Input Voltage: AC~100-240V, 50/60 Hz Switching power supply unit Max power: 700W @ 230VAC Seetronic X Series IP65 Power Connectors IN/OUT Power supply cable 1,0 mt included
Weight and dimensions	Net weight: 9,0 kg Dimensions: 400x200x200 mm (without bracket)
