SFAT POWER JET FOAM 500

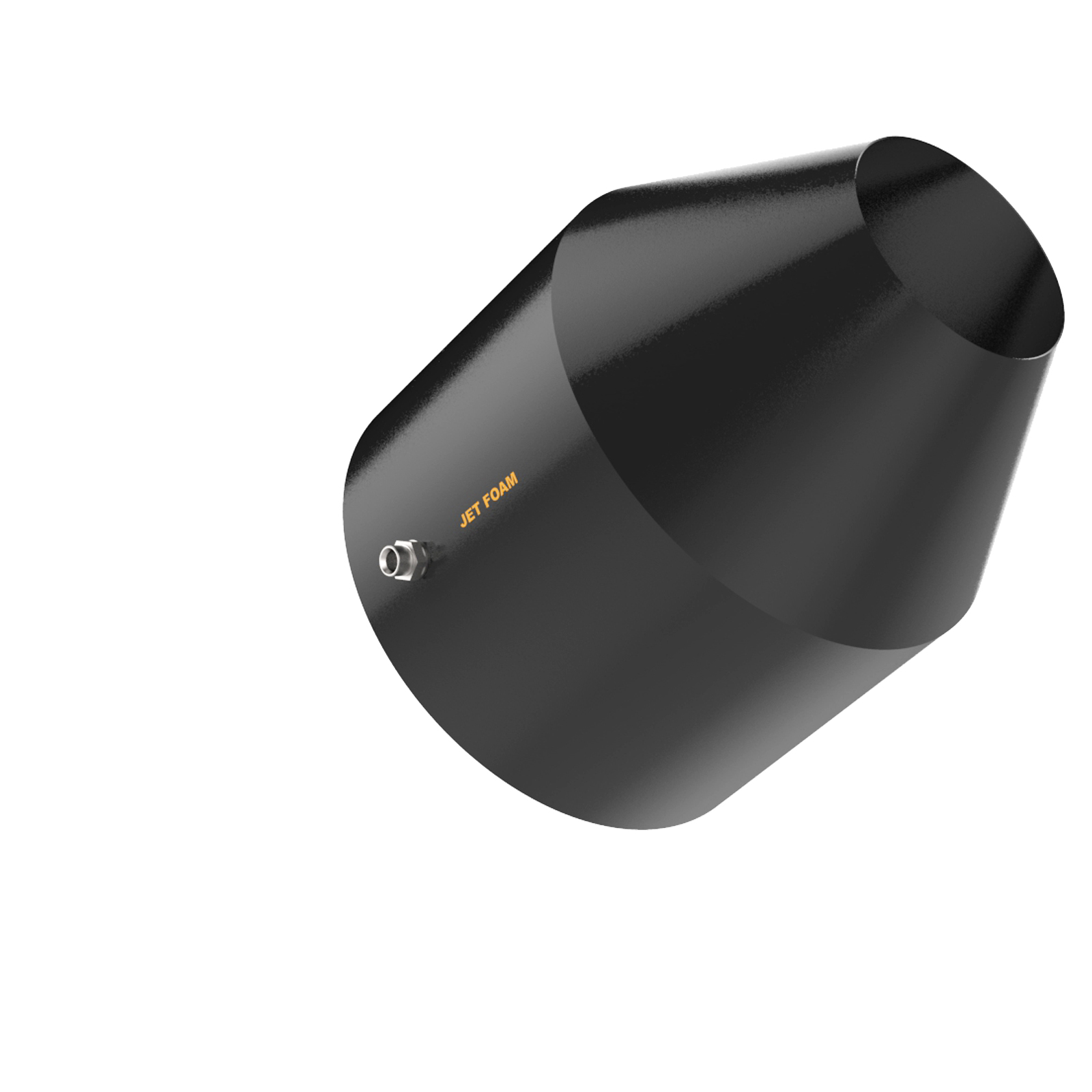

POWER MACHINE – JET FOAM 500 – CONCEPTO DE SISTEMA DE CABEZAS INTERCAMBIABLES

INTERCHANGEABLE HEAD SYSTEM CONCEPT

Descripción

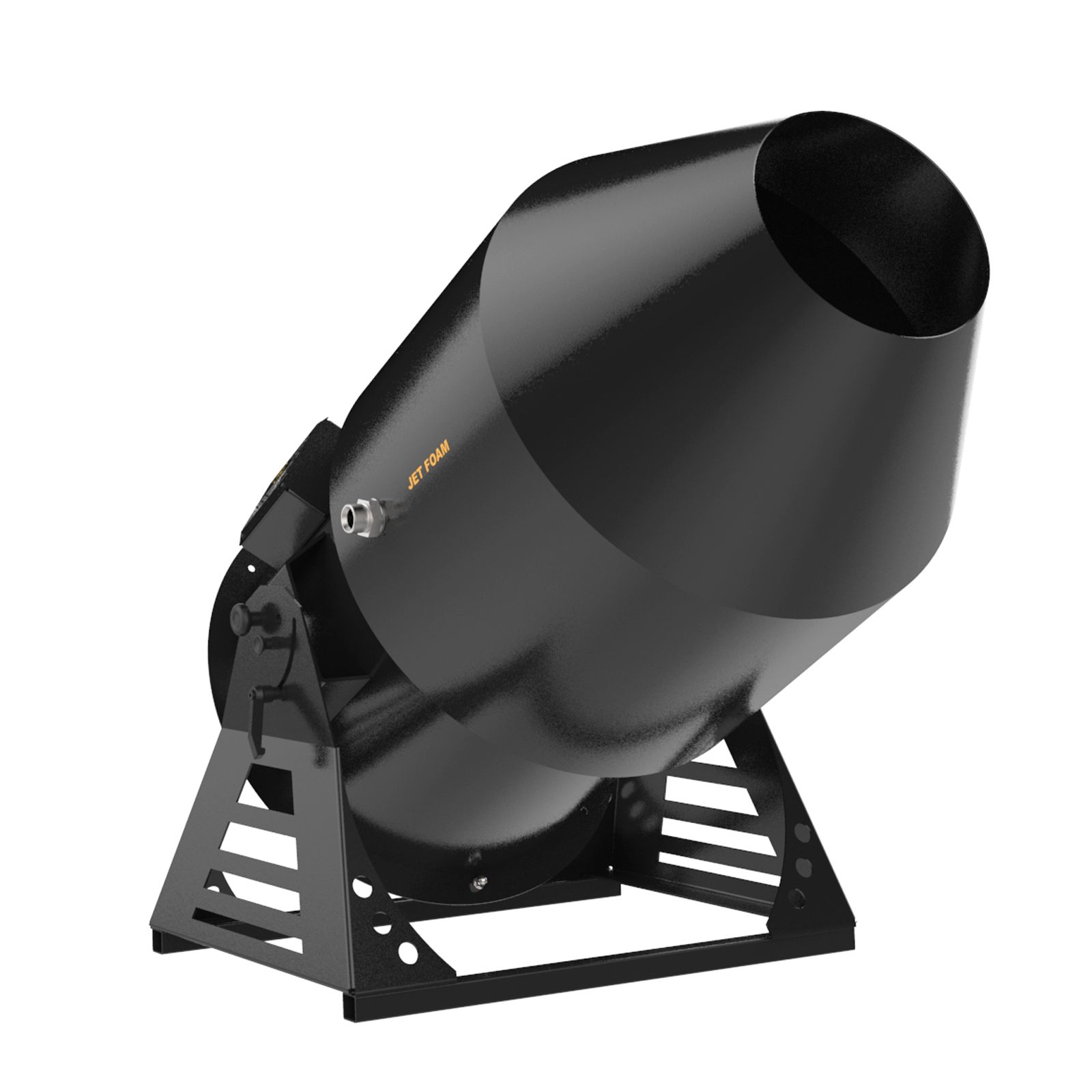

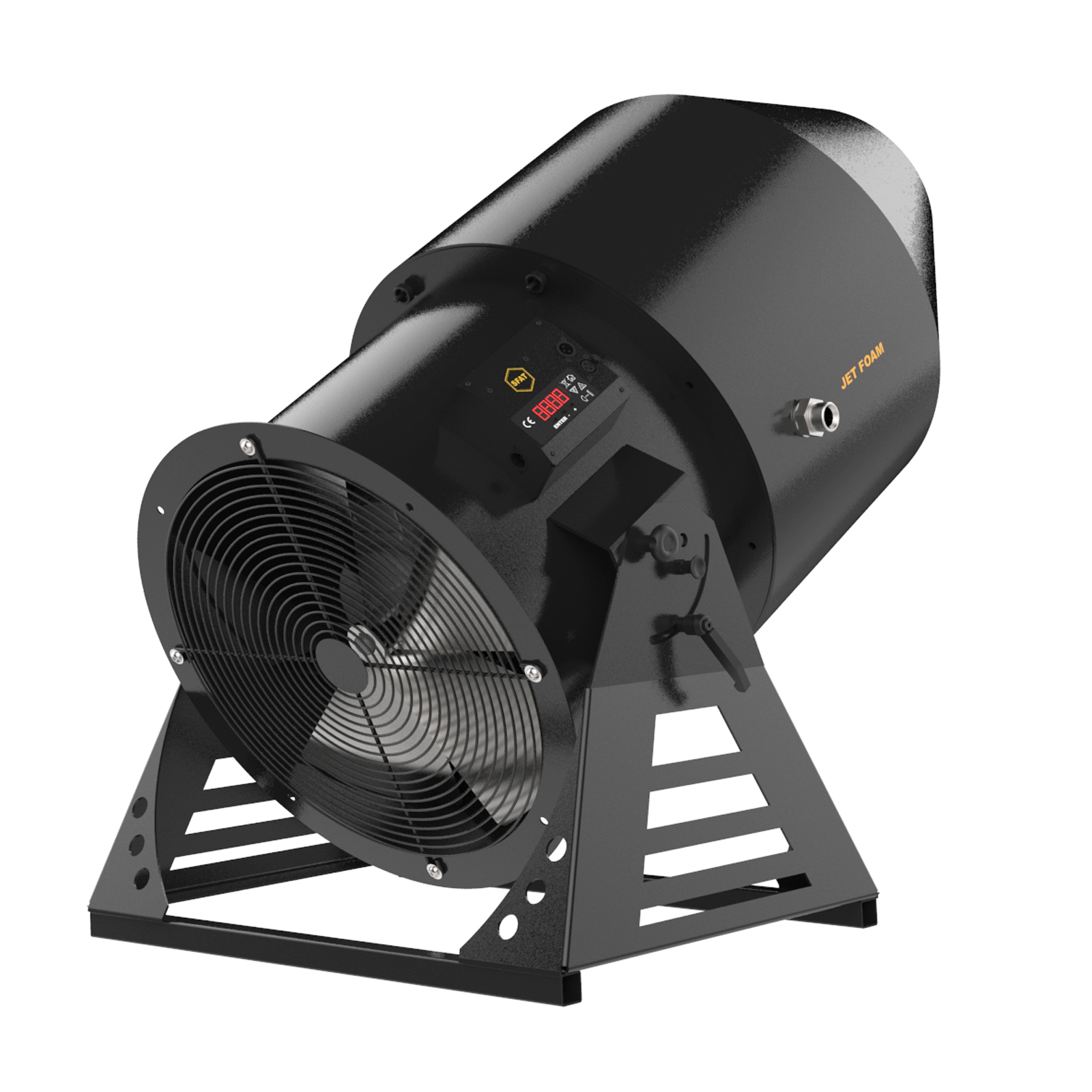

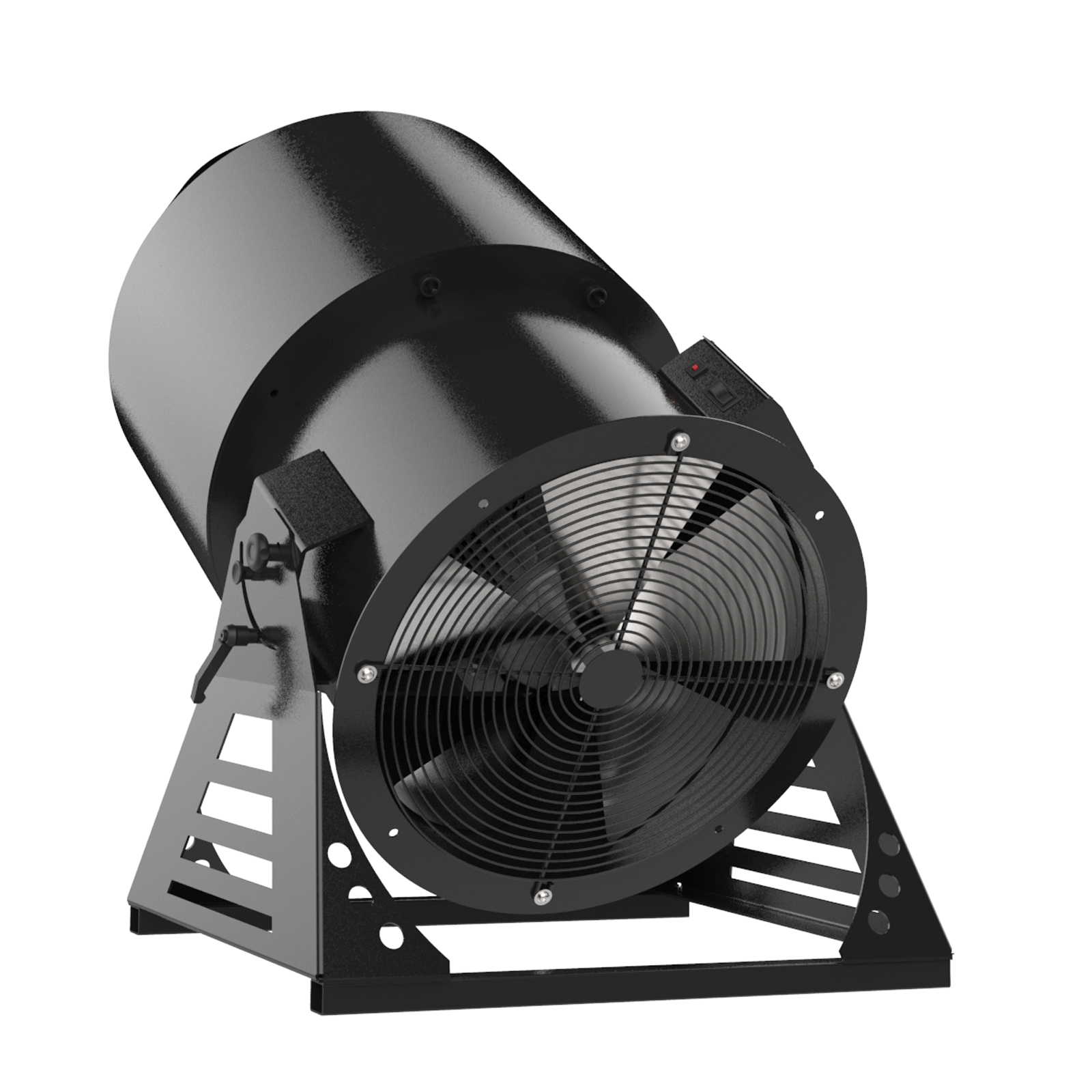

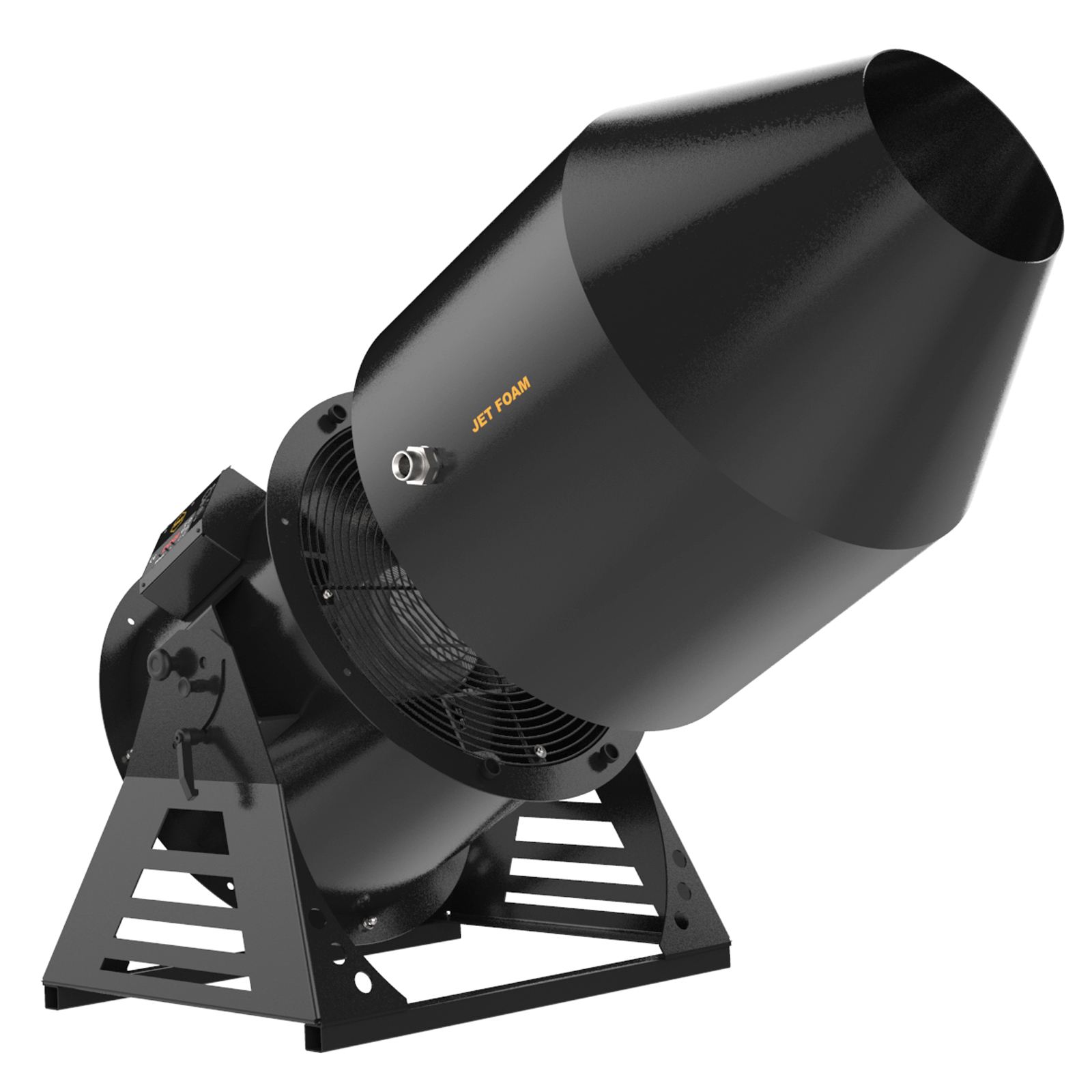

La Power Jet Foam 500 es una máquina que produce y proyecta un gran volumen de espuma sintética basada en agua y concentrado de surfactante activo líquido.

Funciona con un flujo de aire masivo que impulsa la mezcla a través de la red para que la espuma se arroje a varios metros de distancia. Las 7 posiciones giratorias permiten elegir el ángulo de proyección.

The Power Jet Foam 500 is a machine that produces and sprays a large volume of synthetic foam based on water and liquid surfactant active concentrate.

It works with a massive airflow that propels the mixture through the net so that the foam is thrown several meters away. The 7 rotating positions allow you to choose the projection angle.

Realizada íntegramente en aluminio, con acabado de muy alta calidad. Fiable y muy potente, esta máquina ofrece una proyección muy impresionante de 12 a 15 m de chorro de espuma continua.

Made entirely of aluminum, with a very high quality finish. Reliable and very powerful, this machine offers a very impressive projection of 12 to 15 m of continuous foam jet.

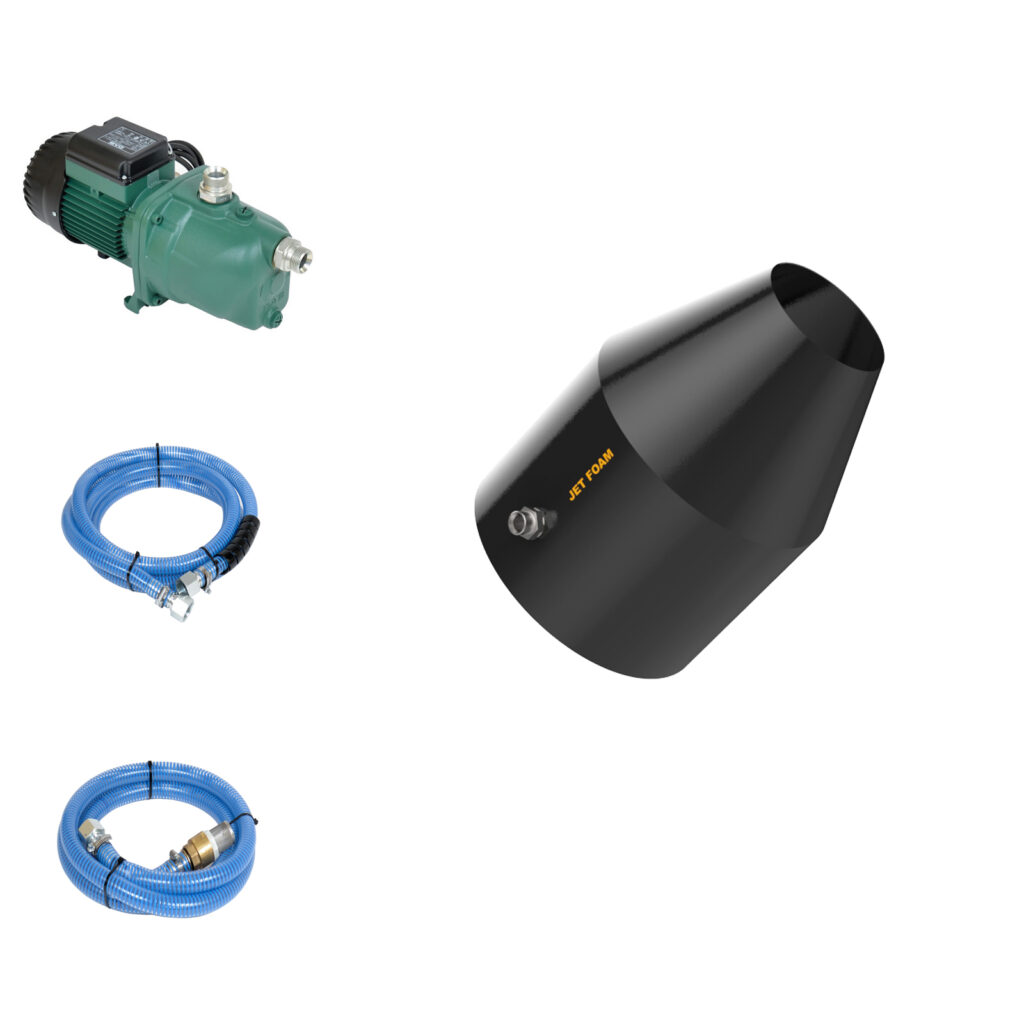

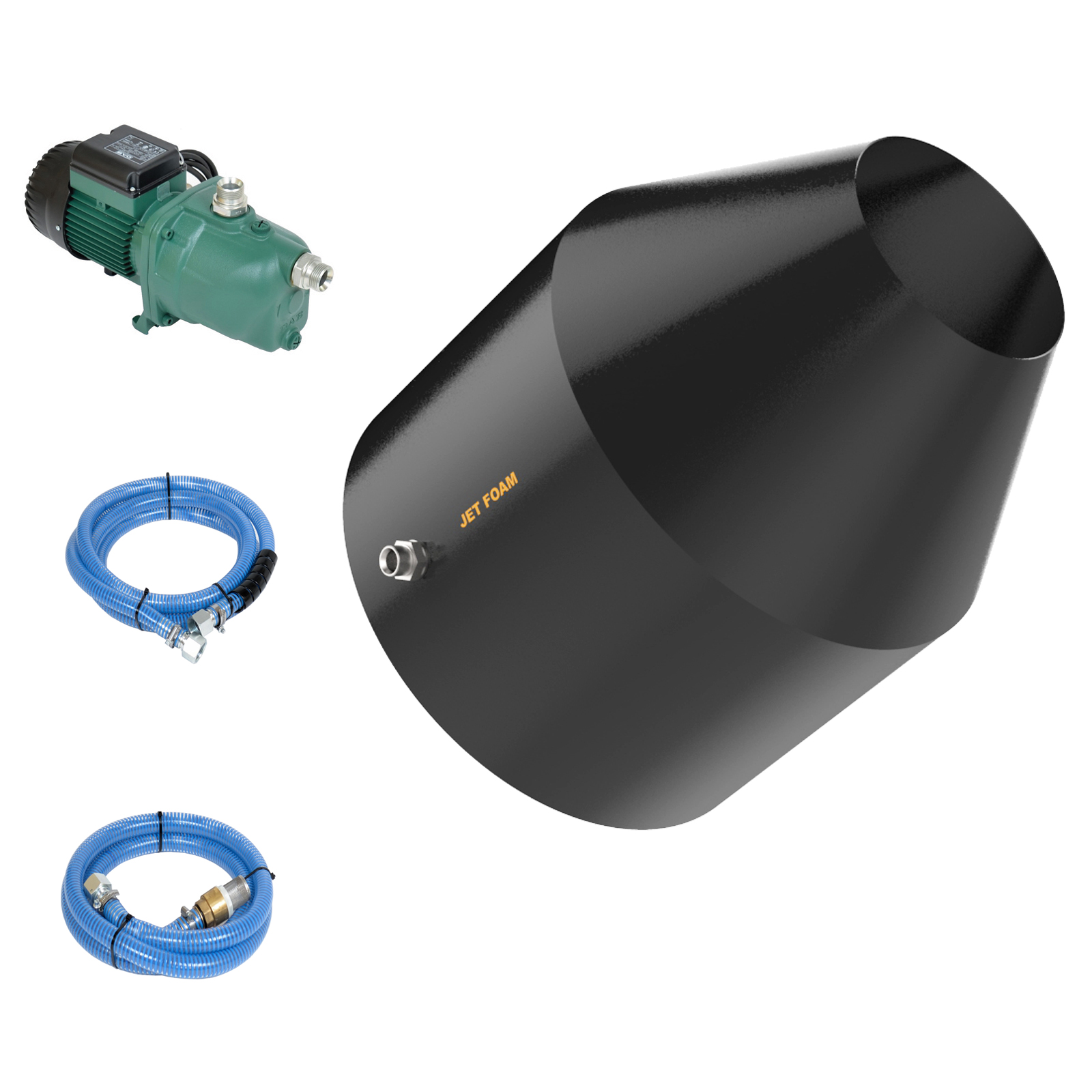

La máquina se entrega con juegos de bomba y manguera y cables de alimentación.

The machine is delivered with pump and hose kits and power cables.

MODELE POWER JET FOAM 500
REFERENCE 100PM1152
VOLTAGE 230V ~ 50Hz Ac
ELECTRIC MOTOR Asynchrone Mono
RPM 3000 / rpm
POWER REQUIREMENT 1500W
LEVEL PROTECTION IP42
POWER ROCKER SWITCH 10A
FUSE 10A
DIMENSION – LENGHT 1145,50 mm
DIMENSION – WIDTH 721,00 mm
DIMENSION – HIEIGHT 700,30 mm
WEIGHT 44 kg
FAN TECHNOLOGY Helicoidal fan
AIRFLOW / HOUR 12000m3 / hour
AIR SPEED 54m / sec
SOUND LEVEL 80 db
OPERATING MODE On / Off
DMX CONTROL Option available
FOAM PRODUCTION 140m3/mn
FOAM PROJECTION 12 to 14 meters
FLUID CONSUMPTION 70L / mn liquid RTU
OPERATING TEMPERATURE 5° to 50 °
OPERATING HUMIDITY 20% to 90% (non condensing )

Información adicional

Peso 1 kg
Dimensiones 100 × 30 cm
